Duramax E35 ECM Repair — 2006-2007 LLY & LBZ Engine Control Module
No communication, a dead ECM, or injector-driver faults on a 2006-2007 Duramax? The E35 puts the injector drivers inside the ECM — we repair that board and return your original, VIN and calibration intact.
Sending several modules? Add them all — one box, one return-shipping charge.
2006-2007 6.6L Duramax E35 engine control module — LLY and LBZ builds, Silverado / Sierra 2500HD & 3500HD
Duramax E35 ECM Repair (2006-2007): the short answer
Duramax E35 ECM repair is a mail-in, board-level repair of the engine control module fitted to 2006-2007 6.6L Duramax engines — the LLY and LBZ builds — in Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks. Unlike the earlier LB7/LLY setup, the E35 contains the injector drivers itself, so driver failures, dead-module faults and no-communication conditions are all ECM repairs on these trucks. Auto Module Lab repairs your original module at our Arlington, Texas bench for $499.95 flat, typically in 3-5 business days, with your VIN and calibration preserved.
How It Works
Three simple steps. Hundreds of mail-in jobs completed for shops, locksmiths, and DIY pros.
Pay & Get Address
Click "Order Now", pay securely online. We email shipping address + instructions within minutes.
Ship Your Module
Pack per the instructions and ship to Arlington. USPS goes to our PO Box; UPS and FedEx must use the street address. Customer pays shipping to us.
Receive in 1-2 Days
Work completed within 24 hours of receipt. Ships back next business day at the return speed you chose at checkout — standard to overnight. Tracking emailed.
What You Get
- Your original E35 ECM opened, inspected and bench-tested
- Board-level repair of failed injector drivers, supply sections and joints
- Your VIN, calibration and learned data preserved through the repair
- Communication verified on the bench before it ships back
- Thermal cycling for intermittent faults that only appear warm
- An honest assessment first if the board cannot be economically recovered
Compatibility
Confirm your part matches one of the variants below before ordering. Not sure? Text us a photo and we'll verify.
Rather than publish an interchange table we cannot stand behind, we verify your specific module before you ship: text us a photo of the ECM label together with your VIN and we confirm the match, free, usually within minutes. Two things make this worth doing on a 2006 truck. The model year is split — early builds are LLY, later builds are LBZ — and the ECM used on these trucks is a Bosch EDC16-family unit whose exact sub-variant we confirm from your label rather than assuming it from the year.
Engines
Applications
Module
Not this service
Will This Fix My Problem?
Honest answer: here's exactly what this service fixes — and what it doesn't.
Fixes:
- ✓No communication with the ECM on a scan tool where power and grounds are confirmed good
- ✓A dead ECM — no response, no start, nothing on the data bus
- ✓Injector-driver faults on a bank, now an ECM fault on these trucks rather than a FICM fault
- ✓Crank-no-start where the ECM is not commanding fuel
- ✓Stored internal control-module codes (P0601, P0606) traced to the ECM
- ✓Intermittent shutdowns or resets that follow underhood temperature
Won't fix:
- ✗Mechanically failed injectors, CP3 pump faults, or low rail pressure
- ✗Wiring, connector and ground faults — including the corroded grounds these trucks are known for
- ✗Failed sensors reporting bad data to a healthy ECM
- ✗Turbo, EGR-hardware or aftertreatment mechanical faults
- ✗A board damaged beyond economical repair — assessed and reported before any charge
- ✗Emissions defeat of any kind. No DPF, EGR or DEF deletes, on this platform or any other.
What we repair on this module
Board-level faults, not symptoms. These are the specific failures our bench process targets.
Codes that commonly lead here
What each code means, and what it does not prove on its own.
A stored code is evidence, not a verdict. Every code below can also be set by wiring, connectors, grounds, power supply, or the component the module is trying to drive. Rule those out before you ship anything — or text us the codes and freeze-frame and we will tell you honestly whether the module is even a suspect.
| Code | Meaning | What it does not prove |
|---|---|---|
| U0100 | Lost communication with the ECM/PCM. | Set by wiring, connector and power-supply faults just as readily as by a failed module. Confirm the ECM has power and ground and that the bus is intact before assuming the module is dead. |
| P0601 | Internal control module memory checksum error. | Points inside the module, but it can also follow a failed or interrupted programming attempt. Worth telling us if the truck was recently flashed or had a battery event. |
| P0606 | ECM/PCM processor fault. | One of the stronger indicators of an internal fault, but low or unstable supply voltage can produce it too. Check charging system and grounds first. |
| P062D | Fuel injector driver circuit performance, bank 1. | On these trucks the drivers are inside the ECM, so this points at the ECM rather than a FICM — but a shorted injector on that bank can still set it with a healthy driver. |
| P062E | Fuel injector driver circuit performance, bank 2. | Same qualification as P062D. Injector resistance and harness condition on that bank need ruling out before the module is condemned. |
| P0201-P0208 | Injector circuit, cylinders 1 through 8. | Individual cylinder codes usually mean that injector or its wiring. It is a pattern across a bank that starts implicating the driver side inside the ECM. |
Lost communication with the ECM/PCM.
Does not prove: Set by wiring, connector and power-supply faults just as readily as by a failed module. Confirm the ECM has power and ground and that the bus is intact before assuming the module is dead.
Internal control module memory checksum error.
Does not prove: Points inside the module, but it can also follow a failed or interrupted programming attempt. Worth telling us if the truck was recently flashed or had a battery event.
ECM/PCM processor fault.
Does not prove: One of the stronger indicators of an internal fault, but low or unstable supply voltage can produce it too. Check charging system and grounds first.
Fuel injector driver circuit performance, bank 1.
Does not prove: On these trucks the drivers are inside the ECM, so this points at the ECM rather than a FICM — but a shorted injector on that bank can still set it with a healthy driver.
Fuel injector driver circuit performance, bank 2.
Does not prove: Same qualification as P062D. Injector resistance and harness condition on that bank need ruling out before the module is condemned.
Injector circuit, cylinders 1 through 8.
Does not prove: Individual cylinder codes usually mean that injector or its wiring. It is a pattern across a bank that starts implicating the driver side inside the ECM.
Our bench process
What happens between your module arriving and it going back in the box.
- 1
Intake and visual inspection
Intake and visual inspection
Your module is logged against your order, photographed as received, and opened. We look for the things that decide whether a repair is even sensible: liquid ingress, corrosion tracking, previous repair attempts, physical damage to the connector or housing, and burnt or lifted components.
- 2
Power-up and communication test
Power-up and communication test
The module is powered on a bench harness and we confirm whether it comes up and communicates at all. A module that will not respond and one that responds but misbehaves are two different faults, and this is the step that separates them.
- 3
Fault localisation under load
Fault localisation under load
We test the sections that actually fail on these modules rather than guessing from the code you arrived with — supply rails, driver outputs, and the circuits feeding them, measured with the module doing work rather than sitting idle. Intermittent faults get thermal cycling, because a joint that reads fine cold is exactly the joint that opens hot.
- 4
Component-level repair
Component-level repair
Failed components are replaced and weak or cracked joints reworked. We repair the board you sent — this is not a swap-and-return. If a fault traces to something beyond economical repair, work stops here and you hear about it before anything is charged.
- 5
Data preservation and verification
Data preservation and verification
Where the repair touches memory or requires a programming step, your existing calibration and learned data are read first and restored afterwards, so the module goes back configured to your truck rather than blank.
- 6
Bench verification and return
Bench verification and return
The repaired module is retested on the bench, including the specific function that failed, and thermally cycled again before it is signed off. It ships back in protective packaging with tracking, at the return speed you chose at checkout.
Why repair your original?
The case for keeping the module that is already married to your vehicle.
It is already married to your truck
Your module carries your VIN, your calibration, and the values it has learned over its life. Repairing it keeps every one of those. A donor module carries someone else's, which is why used units so often need a programming session before the truck will run properly — an extra step, an extra cost, and an extra thing to go wrong.
A used module is the same age as yours
The realistic alternative to repairing a fifteen-year-old module is a fifteen-year-old module out of another truck, with an unknown service history and the same components approaching the same end of life. Repairing yours targets the part that actually failed instead of rolling the dice on someone else's.
The failure is usually smaller than the part
These modules do not generally fail as a whole. They fail at a driver, a supply section, or a set of joints — a repairable area on an otherwise sound board. Replacing the entire module to fix that is the most expensive way to solve a small problem.
You find out before you commit
We inspect and test before we repair, and if a board is beyond economical recovery we tell you rather than doing the work anyway. You are never charged for a repair we cannot deliver, which is not a promise a salvage-yard module comes with.
Repair vs used vs replacement
Four ways out of this failure, compared honestly.
| Path | What you actually pay for | Programming needed | Your data & tune | Main risk |
|---|---|---|---|---|
| Repair your original (this service) | Bench diagnosis and board-level repair of the module you already own. One flat price, one shipment each way. | None in most cases — it is still your module, still married to your truck. | Retained. VIN, calibration and learned values stay where they are. | A board damaged beyond economical repair. We assess first and tell you before charging. |
| Used / salvage module | A cheaper part up front, plus whatever it takes to make it work with your truck. | Usually yes — a donor module carries another VIN and another calibration. | Lost. You inherit the donor truck's configuration. | You are buying an unknown module of the same age and duty cycle. It can fail the same way, sometimes immediately. |
| Remanufactured unit | A rebuilt exchange unit, typically with a core charge and return of your original. | Usually yes, depending on how the reman was prepared. | Depends entirely on the supplier — ask before you buy. | Quality varies widely between remanufacturers, and your original is gone once the core ships. |
| New module through a dealer | A new part, dealer programming labour, and usually a tow if the truck will not run. | Yes — dealer setup and configuration to your VIN. | Configured fresh to your VIN by the dealer. | The highest-cost path, and dealer scheduling controls your downtime. |
- What you actually pay for
- Bench diagnosis and board-level repair of the module you already own. One flat price, one shipment each way.
- Programming needed
- None in most cases — it is still your module, still married to your truck.
- Your data & tune
- Retained. VIN, calibration and learned values stay where they are.
- Main risk
- A board damaged beyond economical repair. We assess first and tell you before charging.
- What you actually pay for
- A cheaper part up front, plus whatever it takes to make it work with your truck.
- Programming needed
- Usually yes — a donor module carries another VIN and another calibration.
- Your data & tune
- Lost. You inherit the donor truck's configuration.
- Main risk
- You are buying an unknown module of the same age and duty cycle. It can fail the same way, sometimes immediately.
- What you actually pay for
- A rebuilt exchange unit, typically with a core charge and return of your original.
- Programming needed
- Usually yes, depending on how the reman was prepared.
- Your data & tune
- Depends entirely on the supplier — ask before you buy.
- Main risk
- Quality varies widely between remanufacturers, and your original is gone once the core ships.
- What you actually pay for
- A new part, dealer programming labour, and usually a tow if the truck will not run.
- Programming needed
- Yes — dealer setup and configuration to your VIN.
- Your data & tune
- Configured fresh to your VIN by the dealer.
- Main risk
- The highest-cost path, and dealer scheduling controls your downtime.
We deliberately do not publish dealer or reman dollar figures — those move constantly and vary by region, and a made-up number would be worse than none. Call your dealer for a current quote and compare it against the flat price above.
Why 2006 is the year everyone gets wrong
The 2006 model year straddles the LLY-to-LBZ transition, and the two builds do not have the same architecture. An early-build 2006 is an LLY, which drives the injectors through a separate FICM. A later-build 2006 is an LBZ, where the drivers moved inside the ECM. That means two trucks that are both "2006 Duramax" can need two entirely different services for the same dead-miss symptom. Your VIN and build date settle it in a minute — send them to us before you order and we will tell you which module you are actually looking for.
Compare Duramax modules by generationShipping Instructions
These details are also emailed to you the moment your payment clears.
Ship the ECM only — no harness, no brackets, no mounting plate. Note your stored codes and whether the truck communicates at all, because "no comms" and "comms but faults" get tested differently. Return shipping is selected and paid at checkout — Standard $24.95, UPS 2-Day $54.95, or UPS overnight $94.95. Ship to PO Box 120241, Arlington TX 76012 (USPS) or 1009 Oakwood Ln # 120241, Arlington TX 76012 (UPS/FedEx).
What to include in your box
- Your Duramax E35 ECM (module only)
- A note with your stored codes, whether the truck communicates, and whether the fault is hot, cold or constant
- Your VIN and model year — how we confirm the 2006 LLY / LBZ split
- A printed order confirmation
- Your name, return address, and a phone number we can text
Ship to
Auto Module Lab
If shipping USPS
PO Box 120241
Arlington, TX 76012
If shipping UPS or FedEx
1009 Oakwood Ln # 120241
Arlington, TX 76012
Both shipping labels — to the lab and back to you — are purchased the moment you order. Your prepaid inbound label (already addressed) arrives by email; the return ships on the speed you chose at checkout.
Need to perform this job remotely?
Get an Auto Module Lab Remote Programming Kit and have our technicians program supported vehicles from your shop — the car stays on your lift and nothing gets posted.
Buy the interface once — program with us anytime. Supported procedures vary by vehicle, module, OEM software and security requirements.
Frequently Asked
Still have a question? Text us — replies in minutes.
Is my 2006 truck an LLY or an LBZ?
My truck has no communication at all. Is that always the ECM?
Will my calibration and VIN survive the repair?
Do I need to send the FICM too?
How is this different from your E35B service?
What if the problem turns out to be an injector after all?
Do you do EGR or DPF deletes on the E35 while it is there?
How long is the turnaround?
Can I send a used ECM out of another truck for you to repair?
Is there a warranty?
Do you work with shops and fleets?
Where is the work done?
Related Services
Other bench services for the same brand or use case.
GM Cluster Upgrade + Mileage Program
Dead gauges, dim display, or want the higher-trim cluster? We upgrade and program your GM instrument cluster with the mileage and VIN carried over correctly.

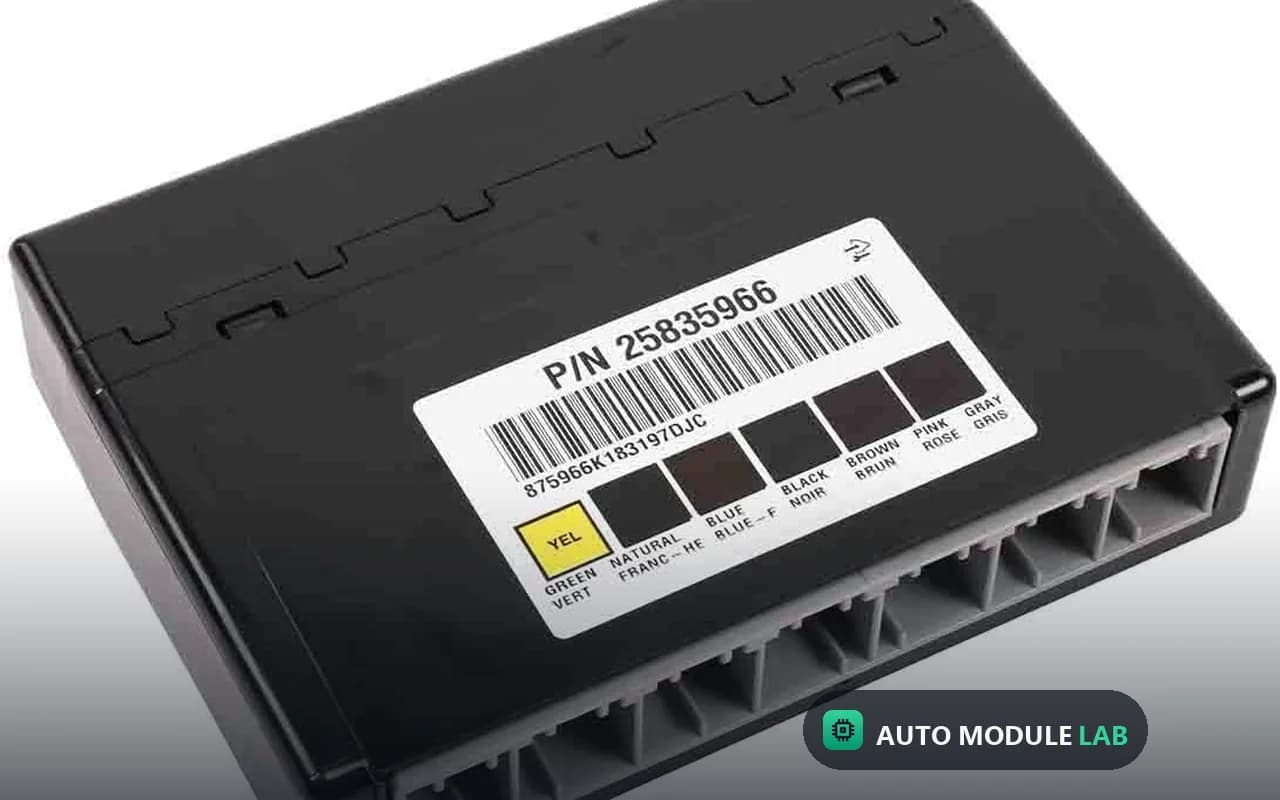

GM BCM Standalone Clone (2000-2023)
Failed GM BCM taking your lights, locks, and anti-theft with it? We clone a working BCM to a replacement — VIN, mileage, theft system and all coding preserved.
GM Global A Virginize (Used ECM)
Used Global A ECM that SPS refuses to program? We reset it to a virgin, unmarried state so GM SPS / TIS2Web will take it to your VIN.
Where we serve Duramax E35 ECM Repair (2006-2007)
Mail-in means nationwide — we accept modules from all 50 states and DC from our Arlington, Texas lab. These states have their own shipping-and-transit page for this service:
Ready to ship?
$499.95 flat, typical 3-5 business day bench turnaround. Pay now, get the shipping address by email, drop it in the mail. Your module is back on your bench within a week.
