Volvo CEM Cloning & Data Transfer — Mail-In Bench Central Electronic Module Service
Water got into the CEM and now the car won't start, won't communicate, or won't recognize the key? Mail in your original plus a matched donor and we clone the full dataset — VIN, immobilizer, key count, and config — onto the replacement on the bench so it drops in.
Sending several modules? Add them all — one box, one return-shipping charge.
Volvo CEM across early P2 (1999–2004) and late P2 (2005–2014) S60/S80/V70/XC70/XC90, P1 (2004–2013) C30/S40/V50/C70, and P3 (2007–2016) S60/S80/V60/V70/XC60/XC70 — including the early-P3 2007–2010 Delphi flat-end-connector CEM. Donor must match platform and part number. Verified by VIN + module label before you ship.
How It Works
Three simple steps. Hundreds of mail-in jobs completed for shops, locksmiths, and DIY pros.
Pay & Get Address
Click "Order Now", pay securely online. We email shipping address + instructions within minutes.
Ship Your Module
Pack per the instructions and ship to Arlington. USPS goes to our PO Box; UPS and FedEx must use the street address. Customer pays shipping to us.
Receive in 1-2 Days
Work completed within 24 hours of receipt. Ships back next business day at the return speed you chose at checkout — standard to overnight. Tracking emailed.
What You Get
- Your original CEM's full dataset cloned onto a hardware-matched donor — VIN, immobilizer, key count, and config, where supported
- All-keys-lost handled where the platform supports it — immobilizer read and a key added
- Bench read + verify of both units before anything is written
- Factory immobilizer kept fully active (this is not an immo delete)
- Bench communication tested with a stable, regulated power supply
- Clear install notes — including whether the engine ECU is needed for a P3 sync
- Modules returned with tracking — return-shipping speed your choice at checkout
Compatibility
Confirm your part matches one of the variants below before ordering. Not sure? Text us a photo and we'll verify.
P2 platform CEM (1999–2014)
P1 platform CEM (2004–2013)
P3 platform CEM (2007–2016)
What carries over on a clone
Common reasons
All-keys-lost (where supported)
Will This Fix My Problem?
Honest answer: here's exactly what this service fixes — and what it doesn't.
Fixes:
- ✓No-start / no-comms after the CEM corroded from water intrusion
- ✓Car electrically dead or dropping communication with a failed CEM
- ✓Key not recognized and immobilizer active after a CEM fault
- ✓You installed a used donor CEM and the car won't start or match
- ✓You want your VIN, keys, and config carried onto healthy used hardware
- ✓All-keys-lost on a supported platform where the immobilizer can be read
Won't fix:
- ✗Does not include the donor CEM — you source a platform- and part-number-matched used unit (we verify the numbers first)
- ✗Does not clone a completely dead or unreadable original — that CEM cannot be read
- ✗Does not do an on-car VIDA dealer session — this is bench data transfer
- ✗Does not repair water/corrosion damage to the vehicle harness, grounds, or connectors
- ✗Does not fix no-starts caused by fuel, spark, battery, starter, or wiring faults
- ✗Does not add keys where the CEM is dead or the platform is unsupported for AKL
- ✗Does not bypass proof of ownership for immobilizer or key work
- ✗Does not cover the rear body module — see our Volvo REM clone service
- ✗Does not cover the engine ECU — see our Volvo Denso ECU clone service (the Denso engine ECU pairs to this CEM)
Water in the CEM — clone it out before it's gone
Volvo CEMs corrode from water that tracks down from the windshield and A-pillar, and once the board is far enough gone it can no longer be read — the identity, immobilizer, and key data are lost with it. If your CEM still powers up and communicates, cloning it onto a matched donor now carries your VIN, keys, and config onto healthy hardware while it's still possible. Platform matters: the early P2 (1999–2004) and late P2 (2005–2014) cars use different CEM hardware, and early P3 cars from 2007–2010 use the Delphi flat-end-connector variant — we identify yours by VIN before you buy a donor. A donor must match your platform and part number, a dead original cannot be cloned, and on P3 all-keys-lost we usually need the engine ECU too (see our Volvo Denso ECU clone service if the engine computer is also being replaced). Proof of ownership is required for any immobilizer or key work.
Shipping Instructions
These details are also emailed to you the moment your payment clears.
Verify first: text or email us your VIN and CEM part number off the module label (and proof of ownership for any key / immobilizer work) and we confirm your platform, the donor match, and whether the engine ECU is also needed before you ship. Once verified, remove the CEM (and the donor, if cloning) and ship it to PO Box 120241, Arlington TX 76012 if you ship USPS — or 1009 Oakwood Ln # 120241, Arlington TX 76012 if you ship UPS or FedEx (UPS and FedEx cannot deliver to a PO Box). We clone the data on the bench, test communication, and ship it back via the return option you pick at checkout (Standard $29.95, UPS 2-Day $54.95, or UPS overnight $94.95).
What to include in your box
- Your original CEM AND the hardware-matched donor CEM (if cloning)
- Year, make, model, and engine (e.g. 2011 Volvo XC60 3.2L)
- VIN of the vehicle
- CEM part number off both case labels — we pre-verify the match
- Whether this is a CEM swap, all-keys-lost, or a used-CEM match
- The engine ECU too if a technician flags a P3 all-keys-lost sync
- Proof of ownership (title, registration, or bill of sale)
- A clear photo of the CEM part-number label, plus your name, return address, and phone
Ship to
Auto Module Lab
If shipping USPS
PO Box 120241
Arlington, TX 76012
If shipping UPS or FedEx
1009 Oakwood Ln # 120241
Arlington, TX 76012
Both shipping labels — to the lab and back to you — are purchased the moment you order. Your prepaid inbound label (already addressed) arrives by email; the return ships on the speed you chose at checkout.
Need to perform this job remotely?
Get an Auto Module Lab Remote Programming Kit and have our technicians program supported vehicles from your shop — the car stays on your lift and nothing gets posted.
Buy the interface once — program with us anytime. Supported procedures vary by vehicle, module, OEM software and security requirements.
Frequently Asked
Still have a question? Text us — replies in minutes.
What does the CEM do and why does a bad one stop the car?
My CEM got water damage — can you still clone it?
Which Volvo platforms do you cover?
How do I pick a compatible donor CEM?
Can you do all-keys-lost on a Volvo?
Is this the same as a dealer VIDA session?
Will this fix a no-start that isn't the CEM?
How much is it, and is it a mail-in service?
Related Services
Other bench services for the same brand or use case.

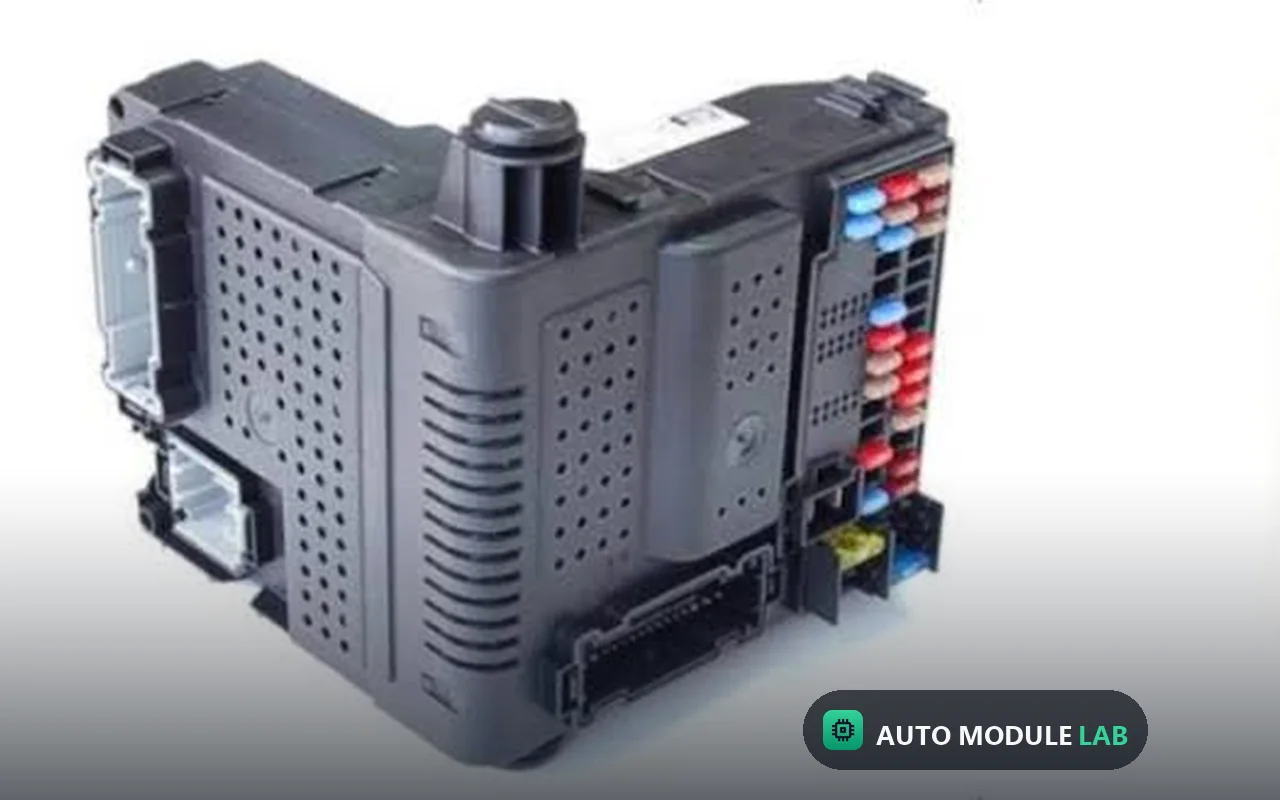

Volvo CEM Key Programming & Clone
