Instrument Cluster Repair Cost (2026)

What instrument cluster work actually costs in 2026

Straight answer first. Repairing the cluster you already own and syncing it to your vehicle's true mileage is $200 on the bench. Programming a replacement or upgraded cluster runs $250 for a VW or Audi clone, $300 for a GM cluster upgrade or swap, and $699 for the GM Denali cluster upgrade kit. If nobody is sure the cluster is even the fault, a bench evaluation is $150. Return shipping is chosen at checkout, from $24.95.

Those are our live bench prices as of August 2026. Dealer figures quoted later in this article are ranges, described as typical or industry-reported, because they vary enormously by brand and region — a cluster for a mainstream pickup and a cluster for a European luxury sedan are not remotely the same part.

Three different jobs sharing one name

The reason cluster quotes look inconsistent is that "instrument cluster repair" is used to describe three jobs with different work, different risk, and different prices.

Job one: repair the cluster you have. Something inside the existing unit failed — stepper motors, backlighting, a display, a power supply stage, or cracked solder. The cluster is opened, repaired at board level, and returned. Because it is your original unit, its stored mileage and configuration come back with it and there is nothing to re-teach the car.

Job two: program a replacement cluster. Your original is beyond economic repair, or it is water-damaged, or it is simply gone. A donor cluster has to be given your VIN, set to your vehicle's true mileage, and — on most modern platforms — matched into the vehicle's immobilizer relationship so the car will actually start.

Job three: upgrade to a different cluster. You want the higher-trim display your truck could have come with, or you are swapping a dash into a VW or Audi and want the gauges to work properly afterward. This is a programming job with a configuration component: the donor has to be told which vehicle it now lives in, and which options it should display.

The prices differ because the work differs. A repair keeps your data. A replacement has to recreate it. An upgrade has to recreate it and reconfigure it.

What is actually failing inside your cluster

Understanding the failure mode tells you which of the three jobs you are buying.

Stepper motor failure. The small motors that drive analog needles are one of the most common failures on clusters from roughly the mid-2000s onward. Symptoms are unmistakable: a needle that sticks, sweeps to the wrong value, or drops to zero while the car is clearly moving. This is repairable at board level and is squarely a job-one problem.

Backlighting and display failure. LEDs age, backlight driver circuits fail, and segment or pixel loss creeps across an LCD until the odometer readout is unreadable. Often repairable, sometimes not, depending on whether the display panel itself or the circuit driving it is the failure.

Cold solder and thermal fatigue. A dash sits behind glass in direct sun. Years of heat cycling crack solder joints, which produces the classic intermittent fault — everything works fine until the car has been parked in the sun, or works fine only after it warms up.

Power supply and voltage damage. A reversed jump start, an alternator producing ripple, or a chronically weak battery can damage the cluster's power stages. Charging system faults are a genuinely underrated cause of module damage across every brand.

Water and coolant intrusion. A leaking windshield seal or heater core puts moisture somewhere it must never be. Corrosion damage is the failure most likely to push a cluster from job one to job two.

Communication faults. A cluster that is completely dark may be perfectly healthy and simply not receiving power, ground, or network data. Which of those it is decides whether you have a cluster problem or a wiring problem — the dead gauges diagnosis walkthrough works through that properly, and it is worth reading before you remove anything.

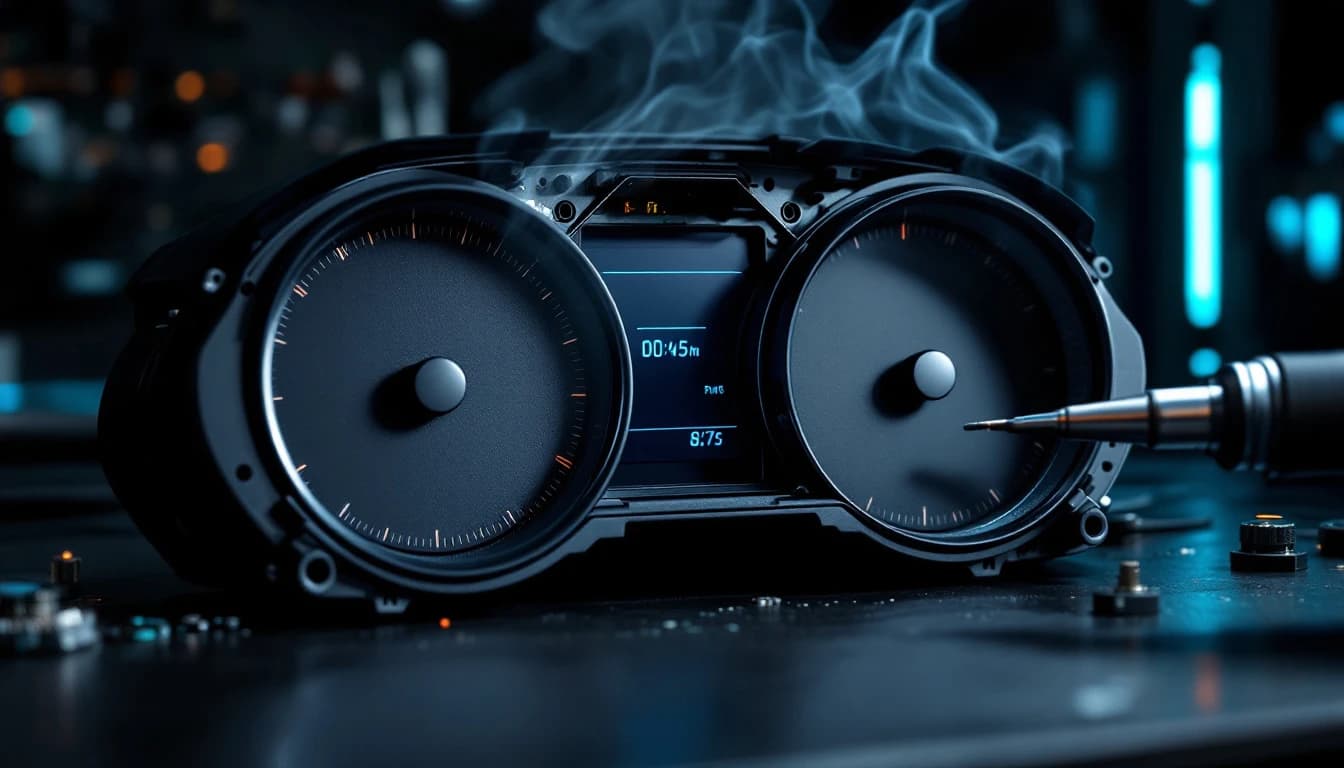

For a detailed breakdown of what is realistically fixable at board level versus what is a replacement, the what is actually repairable in a cluster guide is the companion piece to this one.

People bring me a dash with a dead odometer expecting the worst, and half the time the cluster is fine and it is a bad ground behind the kick panel. The other half, it is one stepper motor and a couple of cracked joints. Almost nobody actually needs the thousand-dollar dealer part they were quoted. — Independent automotive electronics technician, 18+ years (anonymized)

The 2026 price picture

One table. Bench prices are ours and live as of August 2026. Dealer figures are ranges and are described as typical or industry-reported.

Path	What it covers	Typical 2026 cost
Cluster repair + mileage sync	Board-level repair of your original unit, synced to true mileage	$200 flat
VW / Audi cluster clone	Dash swap or replacement cluster cloned to your car's data	$250 flat
GM instrument cluster upgrade / swap	Higher-trim or replacement GM cluster, VIN and configuration written	$300 flat
GM Denali cluster upgrade kit	Complete Denali-style cluster upgrade package, programmed to your truck	$699
Bench evaluation	Powered bench test and read when the fault is not yet identified	$150
Return shipping	Chosen by you at checkout, standard through overnight	from $24.95
Dealer: new cluster supplied and programmed	Part, programming, security setup, shop labor	Commonly reported roughly $600–$1,800+

The dealer row is wide on purpose. A cluster for a common domestic pickup sits near the bottom of it; a configurable digital display cluster on a European luxury car can sit well above the top of it. That spread is exactly why sending the unit you already own is so often the better economic decision — and why the wider module and ECU programming cost guide for 2026 is worth reading if you are weighing several module jobs at once.

What changes the price

1. Repair versus replace. A repairable original is the cheapest outcome available, and it is cheapest for a reason: your mileage, VIN, and security data never leave the unit, so there is nothing to recreate.

2. Whether the original still reads. Even when a cluster cannot be repaired, a unit that still communicates on the bench can have its stored data read and transferred to the donor. That is the difference between an accurate transfer and a reconstruction from documentation.

3. Immobilizer involvement. On most modern platforms the cluster participates in the vehicle's anti-theft system. A donor cluster has to be matched into that relationship or the engine will crank and not start. That is a security operation and it carries a documentation requirement — see the ownership section below.

4. Configuration complexity. A GM truck cluster upgrade has to be told which options to display: transmission type, tire size, engine, trim features. Getting that wrong produces a cluster that works but shows the wrong information. The GM cluster coding and theft-deterrent guide covers what that involves on GM specifically.

5. Donor sourcing. Part numbers matter, hardware revisions matter, and market region matters. A technician verifies fitment against your VIN and the donor's part number before you ship, because a mismatched donor is money spent on postage for nothing.

6. Documentation quality. For any mileage work, the true mileage has to be established from evidence — service records, a title, a prior inspection, or a documented history report. Good documentation makes the job straightforward. No documentation makes it something we cannot do at all.

The mileage question — and the law that governs it

This is the part of cluster work that people are most nervous about asking, so let us be completely direct.

We sync a cluster to the vehicle's true, documented mileage. We never roll a reading back, and we never set a figure lower than the vehicle's actual accumulated mileage.

That is not a marketing position, it is the law. Federal odometer statute makes it illegal to disconnect, reset, or alter a vehicle's odometer with intent to change the mileage indicated, and it makes it illegal to sell a vehicle with a false odometer statement. The federal odometer fraud program is administered by NHTSA, and the disclosure rules that govern used-vehicle sales sit alongside consumer protection enforcement handled by the Federal Trade Commission.

There is a legitimate, legal reason this service exists: when a cluster is replaced, the replacement must be set to the vehicle's true mileage, or the car will be driving around displaying a number that is wrong. Correcting a replacement cluster to match the true, documented figure is the compliant outcome. Leaving a donor's unrelated mileage in place is the non-compliant one.

The scale of the underlying fraud problem is why this is taken seriously. NHTSA has estimated that odometer fraud affects roughly 450,000 vehicles sold each year in the United States, costing buyers well over $1 billion annually. Vehicle history reporting from Carfax has separately identified well over 1.9 million vehicles on U.S. roads with rolled-back odometer readings. Theft and fraud research published by the National Insurance Crime Bureau treats odometer tampering as a recurring consumer-fraud category rather than a victimless paperwork issue.

It matters financially, too. Valuation data from guides like Kelley Blue Book shows mileage moving retail vehicle values by hundreds of dollars per 10,000 miles on typical used vehicles — which is precisely why misstating it is treated as fraud rather than a clerical error. If you want the legal framing in more depth, the odometer and mileage correction legality article covers it at length.

So what we need from you for any mileage work is simple: evidence of the true reading. Photographs of the original cluster before removal, service records, a title, a prior inspection report, or a documented history report. Bring the documentation and this is a routine, legal job. Without it, we decline.

GM upgrades, Denali kits, and VW dash swaps

Three specific jobs come up often enough to deserve their own explanation.

GM cluster upgrade or swap — $300. A GM truck or SUV moving from a base cluster to a higher-trim unit, or receiving a replacement, needs the donor written with your VIN, set to your true mileage, matched into the theft-deterrent relationship, and configured for your truck's actual options. Get the configuration wrong and you end up with a cluster that lights up but reports the wrong tire size or transmission.

GM Denali cluster upgrade kit — $699. This is the complete package rather than programming alone: the upgraded cluster hardware plus the programming to make it correct for your specific truck. It is the highest-priced item in this guide because it includes the part, not only the labor. Fitment is verified against your VIN before anything ships, because Denali-style clusters are not universally compatible across every year and platform.

VW / Audi cluster clone — $250. VW and Audi clusters are deeply tied into the vehicle's component protection and immobilizer architecture, which is why a dash swap so often ends with a car that will not start. A clone copies your original cluster's data onto the donor so the vehicle recognizes it, rather than trying to convince the car to accept a stranger.

If you are replacing rather than upgrading, the cluster replacement programming and VIN and mileage guide covers the specifics of what carries across and what has to be written fresh.

What you ship, and what happens here

1. Verify first. Send your VIN, the part number from the cluster's label, a clear photo of that label, a photo of the current odometer reading, and a description of the symptom. Nothing ships until fitment and supported coverage are confirmed.
2. Remove and pack carefully. Clusters are fragile in specific ways — needles, lenses, and connector pins. Anti-static bag, rigid box, generous padding, and never let the face rest against anything. The remove, package, and ship guide has the details.
3. Mail it in. USPS goes to PO Box 120241, Arlington, TX 76012. UPS and FedEx cannot deliver to a PO Box, so those go to 1009 Oakwood Ln # 120241, Arlington, TX 76012. The work itself is performed at the workshop at 1168 W Pioneer Parkway, Arlington, Texas.
4. Bench read and archive. The unit is powered on a regulated bench supply and read before anything is changed. Original data is archived first, every time.
5. Repair or program. Board-level repair where the fault is repairable; VIN, true mileage, configuration, and security matching where a replacement or upgrade is being programmed.
6. Bench test. Displays, illumination, gauge sweep, and communication are verified before the unit leaves.
7. Return with tracking, via the shipping tier you chose at checkout, from $24.95.

Bench work has a real technical advantage beyond convenience: a regulated supply removes the voltage-sag risk that can brick a module mid-write in a vehicle with a marginal battery, and diagnostic protocol work standardized through SAE International is what allows one properly equipped bench to service such a wide range of platforms consistently.

When it is not the cluster

Before you remove anything, rule these out.

Power and ground. A completely dark cluster is very often a fuse, a corroded ground, or a broken connector pin. Check the feeds before condemning the unit.

Network faults. A cluster showing no data but illuminating normally is usually not receiving bus data. That points at the network or at the module that should be sending the data, not at the cluster.

Charging system. Weak batteries and failing alternators produce intermittent, temperature-sensitive electrical symptoms across every module in the car. Reliability survey work summarized by Consumer Reports consistently ranks electrical and charging complaints among the more common owner-reported problem categories, and long-running dependability research from J.D. Power has tracked in-vehicle electronics as a persistent problem area at an industry average that has hovered around 190 problems per 100 vehicles in recent study years.

Sensors, not displays. A fuel gauge that reads wrong is more often a failed sending unit in the tank than a failed gauge. A temperature gauge that misbehaves is frequently a sensor. The cluster is only reporting what it is told.

If you cannot narrow it down, the $150 bench evaluation exists for exactly that. The unit is powered, read, and tested, and you get a definite answer before you commit to a repair or a replacement. The bench evaluation guide explains what that process finds that an in-car scan tool cannot.

Ownership, security, and honest limits

Cluster work routinely touches immobilizer and anti-theft data. Any job involving keys, immobilizer matching, or security data requires proof of ownership — a registration, title, or equivalent documentation matching the VIN. Any job involving mileage requires documentation of the vehicle's true reading. Both requirements are firm.

We also do not promise universal plug-and-play. Coverage depends on the platform, the part number, and the hardware revision, and a technician verifies fitment against your VIN and the donor's label before you ship. If your specific combination is not supported, you will hear that before you pay for postage rather than after your part arrives.

Frequently asked questions

How much does instrument cluster repair cost in 2026? Board-level repair of your existing cluster with a sync to the vehicle's true mileage is $200 flat on the bench. Programming a replacement or upgraded cluster is $250 for a VW or Audi clone, $300 for a GM cluster upgrade or swap, and $699 for the GM Denali cluster upgrade kit. Return shipping is chosen at checkout and starts at $24.95.

Is it cheaper to repair my cluster or replace it? Repairing your original is almost always cheaper, because your mileage, VIN, and security data stay inside the unit and nothing has to be recreated. Replacement only wins when the original is water-damaged, physically destroyed, or has a failed display panel that cannot be sourced. Dealer replacement including the part is commonly reported in the roughly $600 to $1,800 range depending on the vehicle.

Can you set the mileage on a replacement cluster? Yes, to the vehicle's true, documented mileage only. That is the legal and correct outcome when a cluster is replaced, because otherwise the car displays a figure that belongs to a different vehicle. We never roll a reading back and never set a figure lower than actual accumulated mileage. You will need documentation of the true reading, such as photographs of the original cluster, service records, or a title.

Will my car start after I install a replacement cluster? Only if the cluster has been matched into the vehicle's immobilizer relationship, which is exactly what the programming step does on most modern platforms. This is the single most common reason a physically correct donor cluster fails after installation — the car cranks but will not run because the anti-theft system does not recognize the new unit. Security work requires proof of ownership.

My gauges are dead but the car runs fine. Is that the cluster? Not necessarily, and it is worth checking before you remove anything. Dead or dark gauges are frequently a fuse, a corroded ground, a damaged connector pin, or a network fault preventing data from reaching a perfectly healthy cluster. Check power, grounds, and the charging system first; if it is still unclear, a $150 bench evaluation gives you a definite answer.

Can you upgrade my GM truck to a Denali-style cluster? Yes. The Denali cluster upgrade kit is $699 and includes both the upgraded hardware and the programming to make it correct for your specific truck — your VIN, your true mileage, the theft-deterrent relationship, and your truck's actual option configuration. Fitment is verified against your VIN before anything ships, because these clusters are not compatible across every year and platform.

What do I need to send with my cluster? Before shipping, send your VIN, the part number from the cluster label, a photo of that label, a photo of the current odometer reading, and a short description of the fault. Then ship the cluster itself in an anti-static bag inside a rigid, well-padded box. For any mileage work, include documentation supporting the vehicle's true reading, and for security-related work, proof of ownership matching the VIN.

The bottom line

Instrument cluster pricing only looks chaotic because three different jobs share one name. Once you know which one you actually have, the number is simple.

If your original unit is repairable, that is the cheapest and cleanest outcome: $200 for board-level repair with a sync to true mileage, with your VIN and security data never leaving the unit. If it has to be replaced or upgraded, the programming is $250 for a VW or Audi clone, $300 for a GM cluster upgrade or swap, or $699 for the complete Denali upgrade kit including hardware. If nobody is sure the cluster is even at fault, $150 buys a bench evaluation rather than a guess. Return shipping is yours to choose at checkout, from $24.95.

Two limits are firm and worth repeating. Mileage work is synced to the vehicle's true, documented mileage only — never rolled back, and federal odometer law applies. Security and immobilizer work requires proof of ownership matching the VIN. Within those limits, text us your VIN, the part number from the cluster label, and a photo of the odometer, and you will get a straight answer on which of these prices applies to your vehicle before anything ships.
